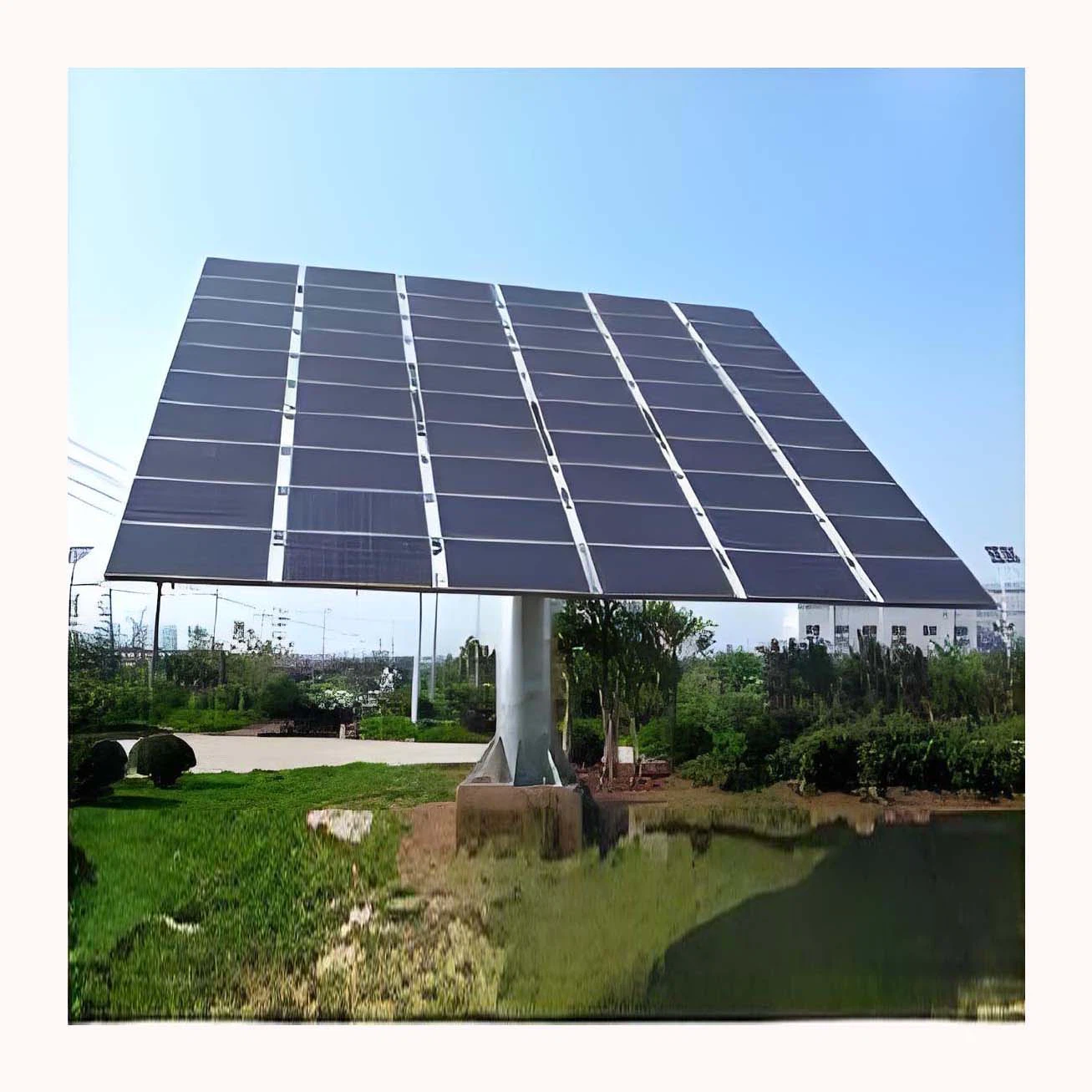

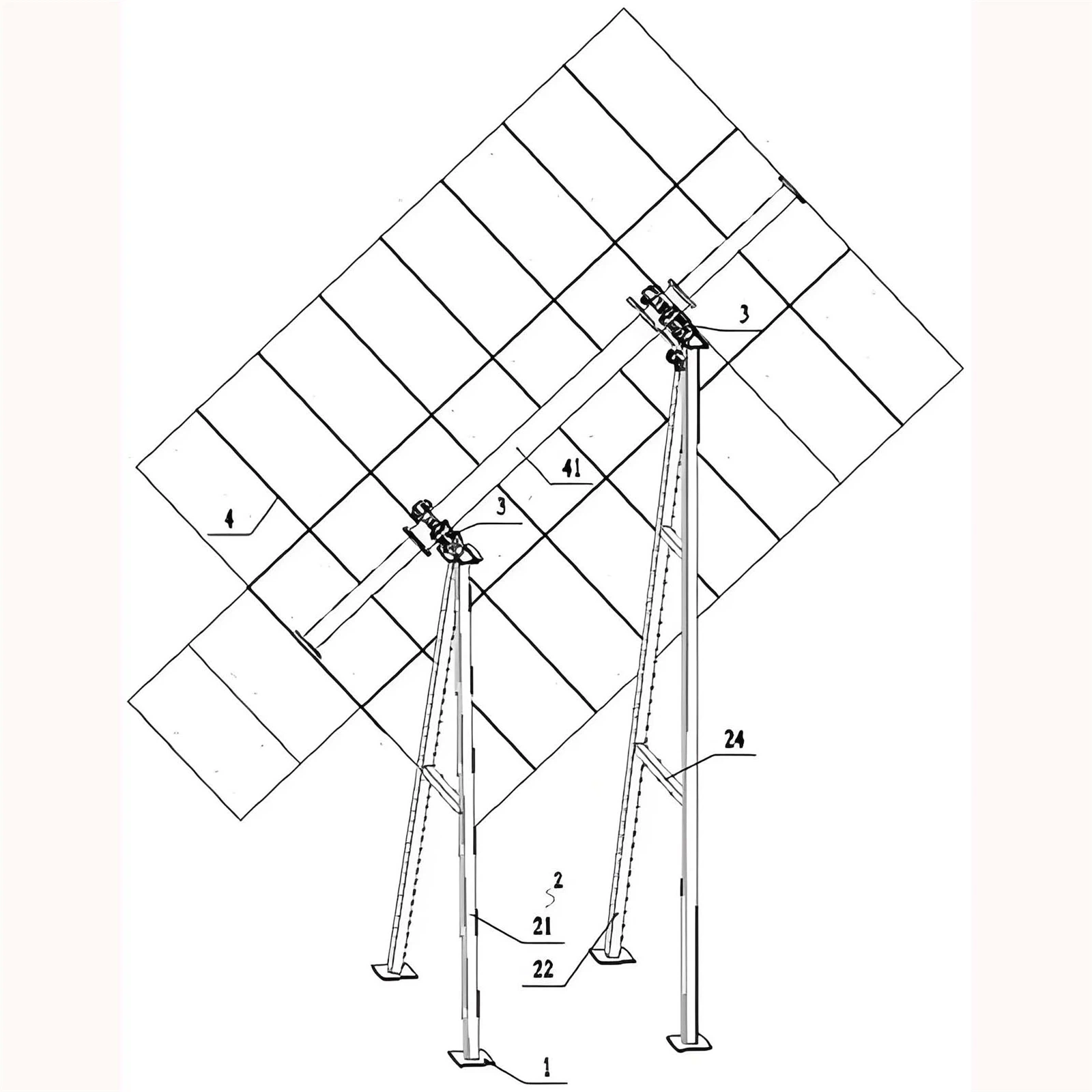

Dual Axis Solar Tracking System

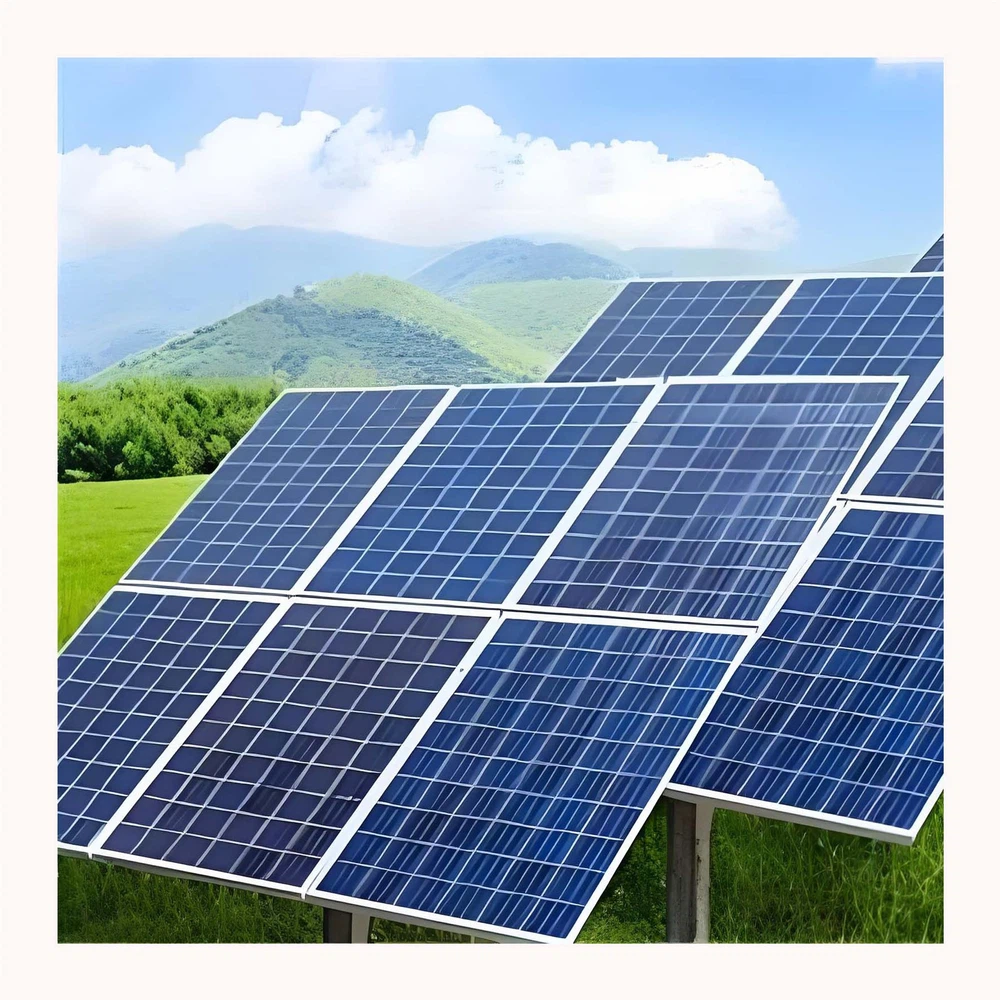

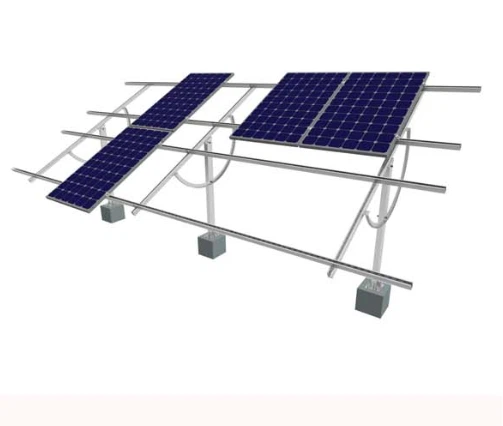

Solar Ground Mounting System

1. High stability

The fixed photovoltaic bracket uses a robust structural design, which can maintain stability under various climatic conditions and reliably support photovoltaic modules

2. Low maintenance cost

The fixed photovoltaic bracket has no moving parts, simple structure,relatively convenient production and installation, so the main tenance cost is relatively low.

3. Wide applicability

The fixed photovoltaic bracket is suitable for a variety of sites, including roofs, ground, hillsides, etc. Whether it is urban or rural, the fixed photovoltaic bracket can be flexibly applied.

4.Long life

The service life of the fixed photovoltaic bracket is long, generally reaching more than 30 years.

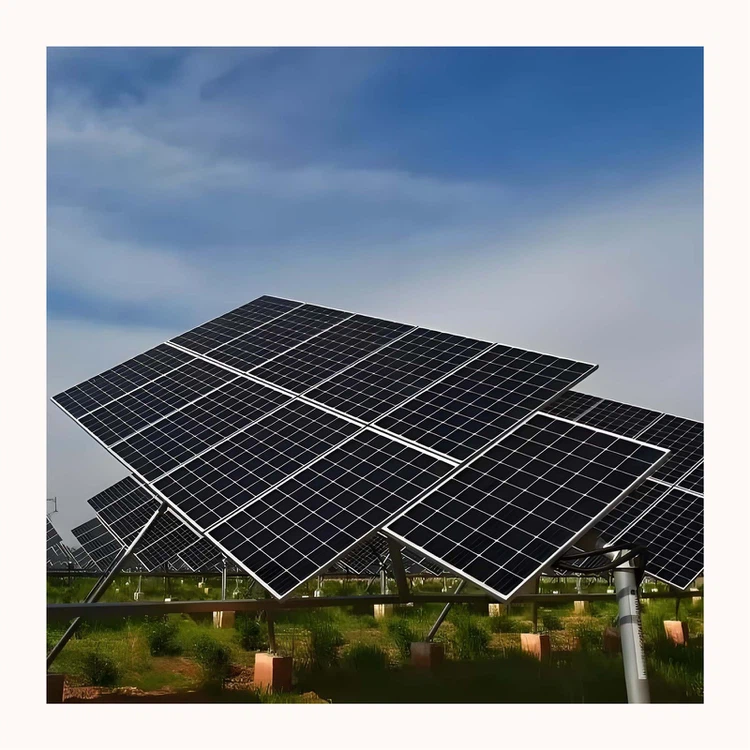

Adjustable Solar Ground Mounting System

1. Adjustable Angle

The photovoltaic panel adjusting bracket usually supports manual or automatic Angle adjustment, which can make the photovoltaic panel always perpendicular to the sun and improve power generation efficiency.

2. Good stability

The photovoltaic panel adjusting bracket is generally made of aluminum alloy, stainless steel and other materials, with stable structure, strong corrosion resistance, and stable support for photovoltaic panels.

3.Be flexible

The photovoltaic panel adjusting bracket can be flexibly arranged and is not limited by terrain.

4.Easy maintenance

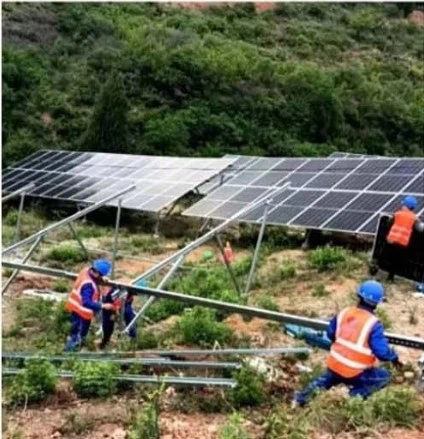

The installation of bracket and components

(a)Installation of fixed solar panels The installation of solar panels should be carried out from the bottom up,step by step, and be horizontal and vertical, the spacing of panels in the same side should be consistent, and attention should also be paid to the direction of panel wiring. When the panel is fixed, the component is fixed on the chain with bolts in the steel structure, and the double thom gasket added between the panel and the guide rail. After the middle fixture and the side fixture are set, the nut is locked.

(b) Panel connection

Determine the connection mode of the panel according to the design drawing, and pay attention not to reverse the positive and negative terminals when wiring to ensure that the wiring is correct. After each panel connected, check whether the panel string break voltage is correct.After connecting, disconnect the line on the panel and carry out the subsequent process operation.
