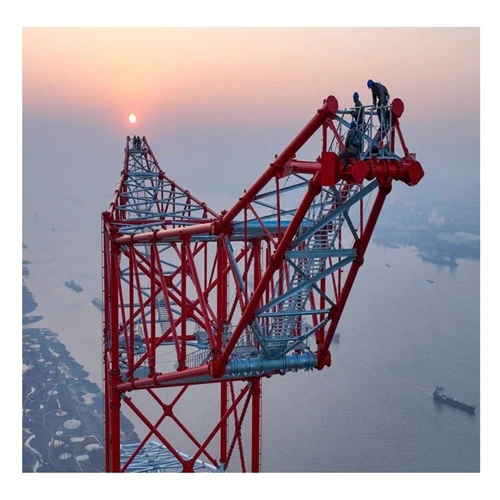

How Wind Load Affects Transmission Tower Design

Wind is one of the most powerful forces a transmission tower must withstand. Every year, storms, hurricanes, and strong gusts cause tower failures around the world-often because wind load was underestimated during the design stage.

If you are planning a transmission line project, understanding how wind load affects tower design is not just a technical detail. It directly impacts safety, cost, and long-term reliability.





Wind load is the force that wind exerts on a structure. For a transmission tower, it comes from two main sources:

Wind pressure on the tower structure itself – the steel members, cross-arms, and connections.

Wind pressure on the conductors and ground wires – the wires act like long sails, transferring force back to the tower.

The total wind load determines how strong the tower must be, how heavy the steel sections need to be, and how deep the foundation must go.





1. Basic Wind Speed
Every region has a design wind speed, usually based on historical weather data. A tower in a coastal area subject to typhoons needs a much higher design wind speed than one in an inland area with mild winds.

2. Terrain and Exposure
The terrain around the tower matters. Open plains, urban areas, forests, and hills all create different wind profiles. Rough terrain creates more turbulence; smooth terrain allows wind to reach higher speeds at lower heights.

3. Tower Height
Wind speed increases with height. A 100-meter tower experiences stronger winds than a 30-meter tower. Taller towers also have larger surface areas exposed to wind.

4. Tower Type
Lattice towers have an open frame, which creates more drag but also allows wind to pass through. Tubular steel poles have a smooth surface with lower drag, but they are heavier and require larger foundations.

5. Conductor Configuration
The number of conductors, their diameter, and their arrangement all affect wind load. Bundled conductors increase the wind-exposed area. Long spans mean more wire surface area transferring force to the tower.

6. Dynamic Effects
Wind is not steady. Gusts, turbulence, and vortex shedding can cause dynamic responses that amplify the static wind load. In some cases, wind-induced vibration can lead to fatigue failure over time.





Structural Strength
Wind load determines the required steel grade, member sizes, and connection design. A tower designed for 160 km/h wind speed will use heavier steel than one designed for 100 km/h.

Foundation Design
The overturning moment from wind load is transferred to the foundation. Higher wind loads require larger, deeper foundations-especially in poor soil conditions.

Tower Geometry
Wind load influences tower shape. For example, triangular or tapered designs can reduce wind resistance. The spacing between conductors and the length of cross-arms are also affected.

Safety Factors
Design standards such as ASCE 7, IEC 60826, TIA-222, and GB 50545 specify safety factors and load combinations. These ensure the tower can withstand extreme wind events without collapse.

Corrosion Protection
Wind-driven rain and salt spray accelerate corrosion. Towers in coastal or high-wind areas often require thicker galvanizing or additional protective coatings.





Wind load analysis is only as good as the manufacturer's engineering capability. A reliable tower manufacturer should:

Perform accurate wind load calculations based on project-specific conditions.

Offer design optimization to reduce steel weight without compromising safety.

Provide full documentation, including structural analysis reports and material certificates.

Have experience with international standards and harsh environments.



At Qingdao Jiudingli Steel Structure Engineering Co., Ltd. , we have over 20 years of experience in transmission tower manufacturing. We hold a 500kV transmission tower production license and a 1000kV tower test report, with ISO 9001/14001/45001 and CE certifications. Our annual capacity is 360,000 tons, and we support projects worldwide with custom design, fabrication, galvanizing, and logistics.





Contact us for a free consultation or quotation.
